ARW 6,4/7,0xL
Self-drilling screws for fastening sandwich panels to wood and concrete
Self-drilling screws with double thread, made of hardened carbon steel, with hexagonal head and aluminium EPDM washer
Product descritption
carbon steel SAE 1022
8 mm
Eco-GrePert™ coating
C4
aluminium Ø19 - A9
UV-resistant polyester coating, 50-60 µm thick, color-matched to the roof covering
fastening of sandwich panels
concrete, ceramic brick full, breezeblock ceramic, aerated concrete
ETA-19/0586
ITB KOT-2020/1258
Specification

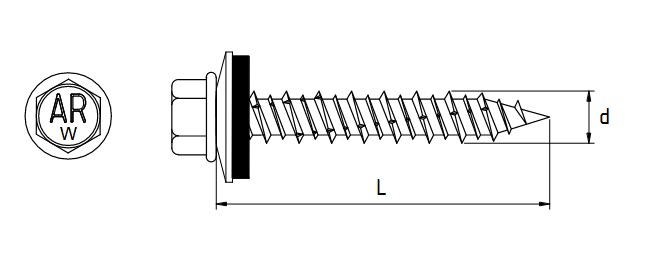

| index | diameter | length | washer | MTmin | MTmax | single pack |
|---|---|---|---|---|---|---|
| d [mm] | L [mm] | Ø | mm | mm | pcs | |
| PC64100EGA9 | 6,4/7,0 | 100 | 19 | 40 | 56 | 100 |
| PC64120EGA9 | 6,4/7,0 | 120 | 19 | 60 | 76 | 100 |
| PC64140EGA9 | 6,4/7,0 | 140 | 19 | 80 | 96 | 100 |
| PC64160EGA9 | 6,4/7,0 | 160 | 19 | 100 | 116 | 100 |
| PC64190EGA9 | 6,4/7,0 | 190 | 19 | 130 | 146 | 100 |
| PC64210EGA9 | 6,4/7,0 | 210 | 19 | 150 | 166 | 100 |
| PC64260EGA9 | 6,4/7,0 | 240 | 19 | 180 | 196 | 100 |
| PC64260EGA9 | 6,4/7,0 | 260 | 19 | 200 | 216 | 100 |
Installation recommendations
30 mm
M8
ok. 5Nm
Downloads
ARW 0 6,4_7,0xL, e.04_21
DoP-19-0586
ETA-19/0586
1488-CPR-0675/Z
HC
